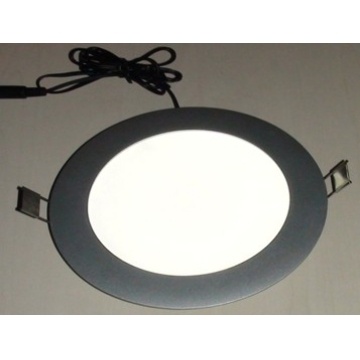

Excellent LED Ceiling Light for Modern Decoration & Illumination
Product name : Excellent LED Ceiling Light for Modern Decoration & Illumination
Item : LED Panel
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:


Excellent LED Ceiling Light for Modern Decoration & Illumination

Model: AG-P006-240X13mm-10W
Approvals: RoHS,CE
Capable: UL
Region: Jiangsu
Brief Description: Thin, High Brightness Epistar LED Ceiling Light. Energy Saving, Free Maintenance
Light Source: LED
Voltage: 220V
Application: Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant, Hotel, Gallery, Sitting Room, Garage, School, Cinema, Bedroom
Material: PC, Aluminum, Acrylic, PMMA, Aluminum Die Casting, ABS



Product Details

Key Specification



Thin, High Brightness Epistar LED Ceiling Light. Energy Saving, Free Maintenance

Outstanding performance
LED Ceiling light consume more than two thirds less electricity than conventional lighting
LED Ceiling light can be made in any shape or size to replace almost all existing applications
LED Ceiling light use high power LED light sources with a design life of over 50,000 hours
LED lighting panels are unbreakable, require zero maintenance and do not contain harmful or hazardous chemicals associated with other low energy lighting products

Product Information
LED Ceiling light are available in a range of standard sizes and can be utilized in two formats:
1. A complete LED Ceiling light with an aluminum frame for uses as a stand alone light source or as a light box to display transparenrencies. Panel size increases in depth to 25mm, the frame depth
2. The LED Ceiling light can be used without a frame for integration into an existing ceiling grid or other aperture where a frame is not required.

All LED light panels are supplied with a 30 Watt 220/12 Volt power supply. High power LED lights are embedded into both long side of each panel.

Specification


Lighting source Epistar SMD3528 LED
LED QTY 90 pcs
Power consumption 10W(includes driver)
Input voltage (Driver) 100V-240VAC /50-60HZ
Input voltage (Lighting) 50~60V DC
Constant current 1050mA
Efficiency ≥87%
PF ≥0.94
LED Lifespan ≥ 50000H
CCT 2700-6000K
Luminous 800-1000lm((±5%)
Bean-angle 150 °
Ra Ra ≥ 75
Temperature rising < 20 ℃
Operation temperature -40~+50℃
Relative humidity 10%-80%RH
Fixture Material Oxidized Aluminum + High Quality PMMA (Acrylic)
Dimension 180mmx 12.5mm

Shock test Random, 2G acceleration 10mins on XYZ. PASS
Protection grade IP44
Insulation class CLASS II
Environmental All materials meet with RoHS compliance
Certificate CE, RoHS







Payment Terms L/C,  T/T,  Others
Minimum Order 50
Lead Time Delivery Time 10 days
Sample Available Yes
Packing Info Inner Carton: 1 PCMaster Carton: 2 PCSInner Carton Size: 127.5CM X 62.5CM X 4CMInner Carton N.W.: 8.7KGMaster Carton: Size: 129CM X 64CM X 10CMMaster Carton: N.W.: 21KG
Target Market(s) Africa,  Eastern Europe,  Hong Kong/ Macao/ Taiwan,  Japan & Korea,  Latin America,  Middle East,  North America,  Northern Europe,  Oceania,  South Asia,  Southeast Asia,  Western Europe
