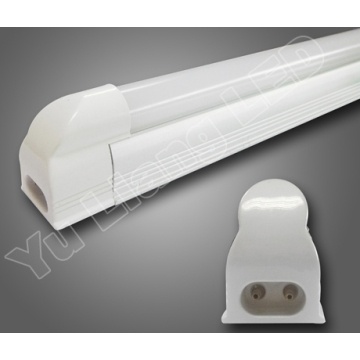

High Lumen T5 SMD LED Tubes
Product name : High Lumen T5 SMD LED Tubes
Item : LED Tube
 Enlarge Image                   Back
←[Previous Product]


High Lumen T5 SMD LED Tubes

Model: YLL-T5SMD7X-A
Approvals: RoHS, EMC,LVD
Capable: UL
Region: Jiangsu
Brief Description: Two years warranty; CE Certification; Rohs compliant; 50000 hours warranty time; Epistar TaiWan Chips
Power: 7W
Tube Diameter: T5
Length: 60cm
Voltage: 380V
Package: Yes
Life: 50000
Illuminant: SMD

Product Details

Key Specification

Basic features:
High luminance LED source: 7.5-8LM/3528SMD
Chips brand: Epistar TaiWan
Chips size: 10X23 MIL
Long life time with over 50000 hours
EMC&LVD certifications and Rohs compliant
Saving energy much more
No flicker, no radialization,little CO2 production
Environment friendly, no Hydrargyrum and other harmful material in the tube
Special structure with aluminium cover and aluminium PCB for good heat elimination
Super quality aluminium: heat elimination factor: 2.8
Super quality PVC material: origin in Japan
High efficiency factor of driver: >90%
 Three years warranty
Detail features:

Description T5 SMD LED tubes
Lighting Source 3528 SMD LED; 7.5-8LM/ LED
Available length 0.6M(112LED) 0.9M(168LED) 1.2M(224LED)
Luminous flux 580LM 805LM 1100LM
Power 7W 10W 14W
Material Alloy + PC
Efficiency 90% Life time 50000hours
available beam color warm white pure white cool white
Beam color 2700K-4500K 4500K-5500K 5500K-7500K
Certifications CE, Rohs, ETL
 Environment requirements:
Working teamperature:
Working temperature: -20 degree to 40 degree
Storage temperature: -30 degree to 60 degree
Working humidity: 30% to 85%
Storage humidity: 10% to 90%
 Installation guide:
1.        Take away the starter and ballast on your current fluorescent tube fixture
2.        Open the cover of the bracket and revice the method of wire connect as bellow
3.        Close the bracket cover and install the LED tube.
Packaging detail:
Tube type Qty per Ctn Qty per inner box Size of Ctn/cm GW/Ctn NW/Ctn
1.2Mtube 20 pcs 1pc 133x75x45 14.9KGS 10.5KGS
0.9Mtube 20 pcs 1pc 133x75x45 12.5KGS 7.9KGS
0.6Mtube 40 pcs 1pc 133x75x45 14.5KGS 10.5KGS


Payment Terms L/C,  T/T
Minimum Order 10
Lead Time Delivery Time 15 days
Sample Available No
FOB Port Shanghai/Ningbo
Loading Info by sea or by air
Target Market(s) Africa,  Eastern Europe,  Hong Kong/ Macao/ Taiwan,  Japan & Korea,  Latin America,  Mainland China,  Middle East,  North America,  Northern Europe,  Oceania,  South Asia,  Southeast Asia,  Western Europe
